Description

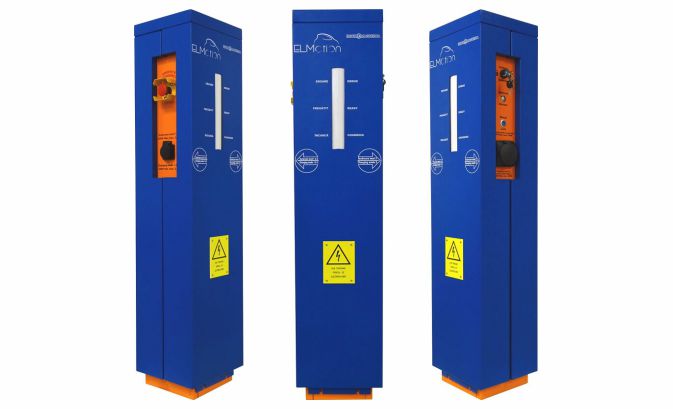

ELMotion Power 22 (EAVE22B) is a power supply equipment for electric vehicles and provides professional charging on the public domain. The equipment is mounted on the ground and it is connected to the 3-phase AC power line (3P + N), providing a maximum charging power of 22.1kW/h at 32A for a single vehicle.
The provided charging current limitation can be adjusted in the range of 6…80A. The connection to the vehicle is done by 2 ways:
– Schuko socket
– Type 2 socket
Access control for charging is done with a key or a button.
Bilingual inscription.
OPTIONS
Remote control charging depending on power and/or time
Web interface for charging management
The housing can be customized upon request
Plug releasing when the power station is switched off
TECHNICAL SPECIFICATIONS
Mains connection 380…415Vac, 50/60Hz, 32A
Grounding system TN-S (L1, L2, L3, N, PE)
Control types
– key – charging validation
– button – charging release and validation
Signaling
– red symbol indicates error
– yellow symbol indicates equipment ready
– green symbol indicates charging in progress
– blue LED symbol indicates blocked plug
Communication ways
– Ethernet 1port 10/100 Mbits/s
– Modbus RTU data exchange and commands
– with the vehicle command by charging cable acc. to SR EN 61851
Dimensions 1250 x 570 x 235 mm
Weight 40Kg
PROTECTIONS
– to overvoltages
– to short-circuit
– to touch
CHARGING MODES
– mode1 – 230Vca, 16A unlimited – Schuko household soket type F with protection cap
– mode2 – 230Vca, 16A limited – Schuko household soket type F with protection cap
– mode3 – 3x[380…415]Vac, 32A – Type 2 socket with protection cap (B case)
PRODUCT CERTIFICATION
CE, CB OICPE nr.743/29-03-2017 according to SR EN 81851-1, SR EN 81851-22
