Description

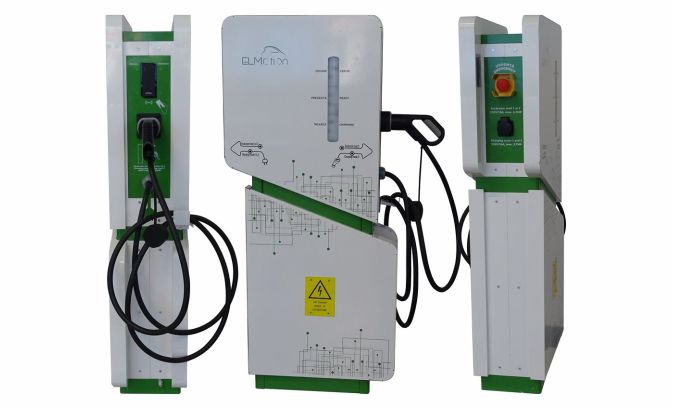

ELMotion Power 22V2 (EAVE22V2C) is a power supply equipment for electric vehicles and offers professional load on the public domain. The equipment is mounted on the ground and connected to the 3-phase AC power line (3P + N) providing a maximum power load of 22.1kW / h to 32A for a single vehicle.
The limitation of the charging current offered can be adjusted in the range of 6 … 80A. The connection to the vehicle is done in 2 ways:
– Schuko socket
– Type 2 plug
Access control for loading is done with a key or a button.
Bilingual inscription.
OPTIONS
Control of remote charging based on power and / or time
Web upload management interface
The casing can be customized according to your request
TECHNICAL SPECIFICATIONS
Network connection 380 … 415Vac, 50 / 60Hz, 32A
TN-S earthing system (L1, L2, L3, N, PE)
signaling
– red symbol indicates error
– the yellow symbol indicates the prepared equipment
– the green symbol indicates that the load is running
communications
– Ethernet 1 port 10/100 Mbits / s
– Modbus RTU data exchange and commands
– with the vehicle via the charging cable
Dimensions 1250 x 570 x 235 mm
Weight 40Kg
PROTECTION
– overvoltage
– short circuit
– at touch
WAYS OF LOADING
– mod1 – 230Vca, 16A unlimited – Schuko type F female with protective cover
– mod2 – 230Vca, 16A limited – Schuko type F female with protective cover
– mod3 – 3x [380 … 415] Vca, 32A – plug type 2 (Case C)
PRODUCT CERTIFICATION
EC, CB OICPE No.743 / 29-03-2017 according to SR EN 81851-1, SR EN 81851-22
